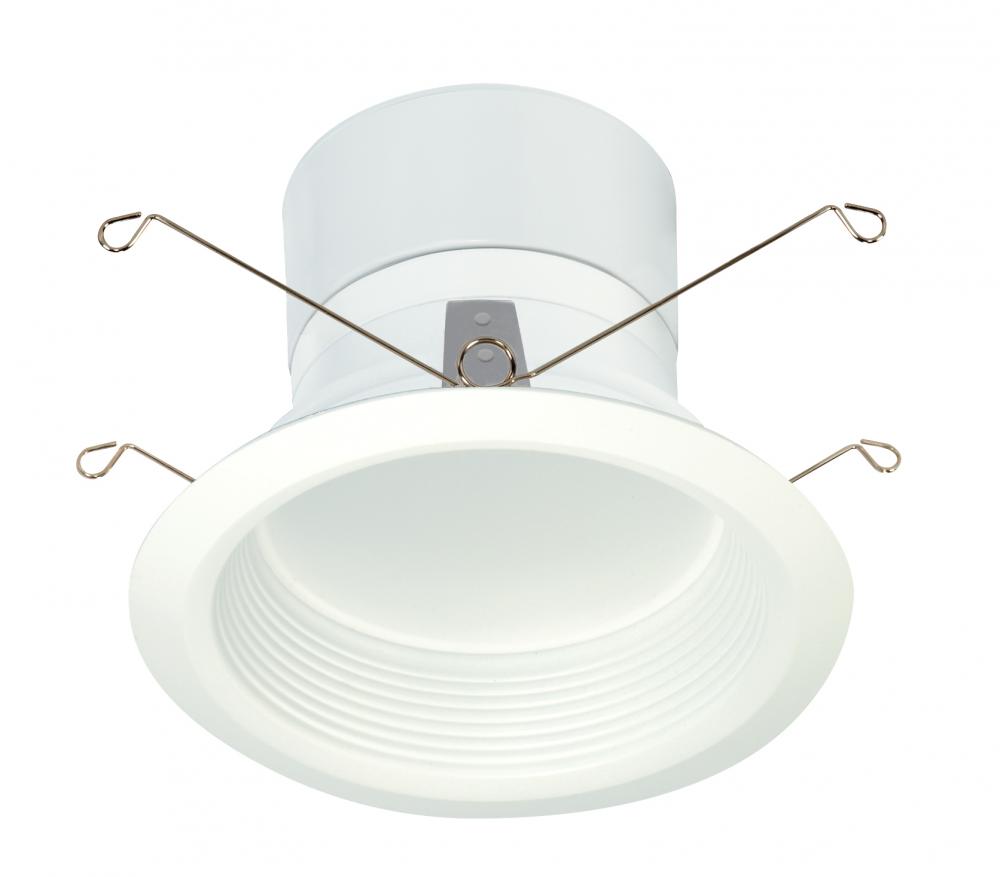

Discontinued - 11.6 watt LED Downlight Retrofit Kit; 5" Baffled; 3000K; Medium base; 120 volts; (X3V8Z)

Discontinued - 11.6 watt LED Downlight Retrofit Kit; 5" Baffled; 3000K; Medium base; 120 volts; Dimmable

Product Specification

Item #

X3V8Z

Dimensions

Height: 6.00"

Width: 6.38"

Additional product details

Internal #

X3V8Z

Category

Recessed

Sub Category

Retrofits

Style

Contemporary

Bulb Hours

35000

Bulb Kelvin

Warm White

Bulb Shape

Integrated LED

Bulb Type

LED

Diameter

6.38

Dimmable

Yes-Dimmable

Harmonized Codes

8539.50.0091

Lumens

680L

Ship Carton Height

12.4

Ship Carton Length

6.69

Ship Carton Width

6.69

Warranty

5 Year Limited - Fixtures

Amps

0.097A

ANSI Base

Integrated

BAA Compliant

Beam Spread

CA Prop-65

Lead

Can Size

5 in.

Carton Cubic Feet

0.3212

Cartons Per Unit

CCT Selectable

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Connection

Direct Wired

Country Of Origin

China

CRI

80+

Dimmable Down To

100 to 20 percent

Dimming Type

Forward Phase

Efficacy

58.62 LPW

FCC Compliant

Yes

Finish Family

White

Fixture shape

Round

Incandescent Equivalent

65W

Indoor Outdoor

Indoor

JA8 Compliant

Mounting Procedure

Ceiling

Operating Temprature

-20C (-4F) to +45C (+113F)

Order In Multiples Of

Pack Type

Box

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

11.6WLED/RDL/5"BFL/KIT/120V 3K

Temperature (CCT)

3000K

Title 20 Compliant

Exempt

Title 24 Compliant

Trim Color

White

Wattage Selectable

Finish

Additional options that would change other selections
